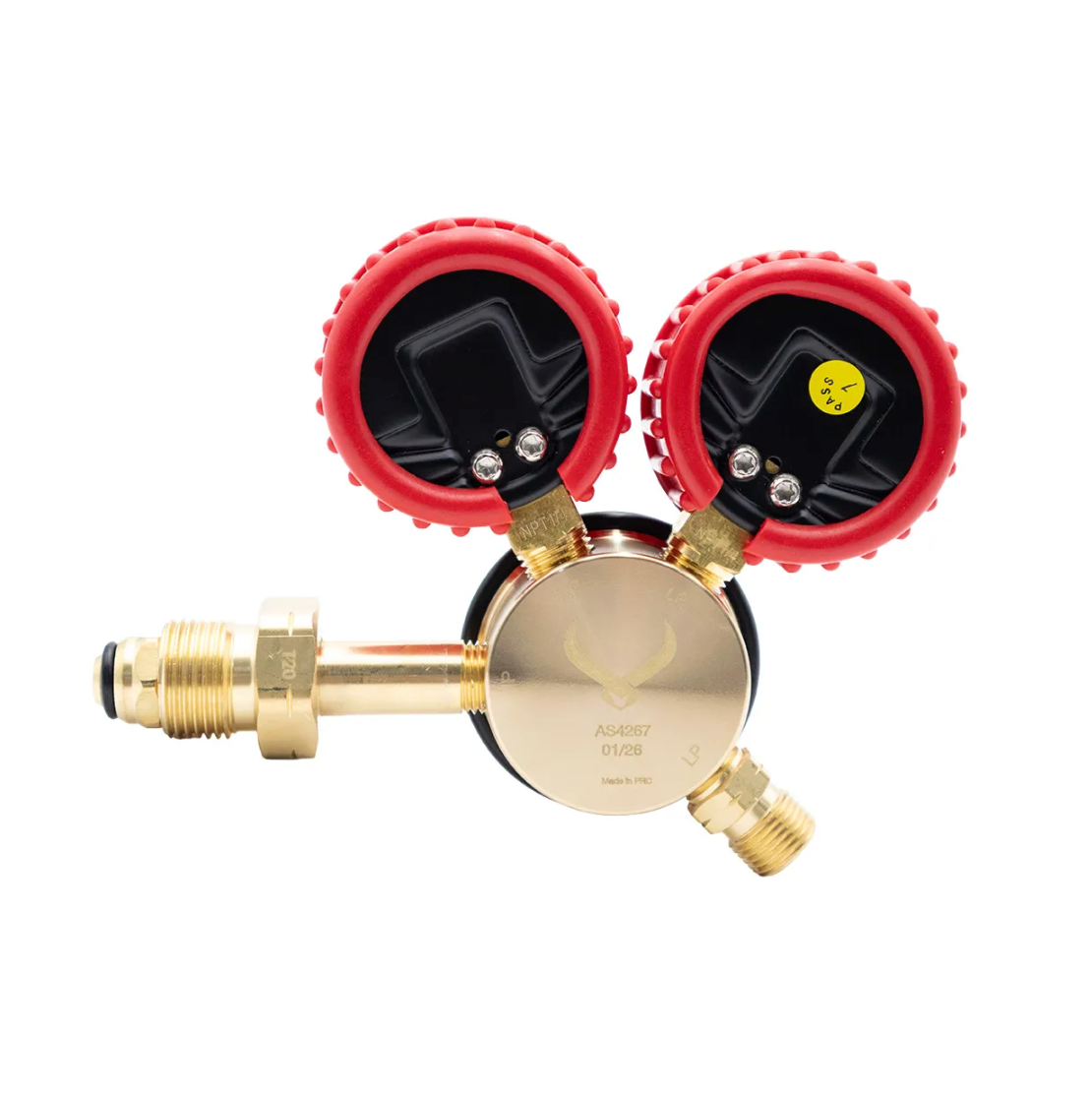

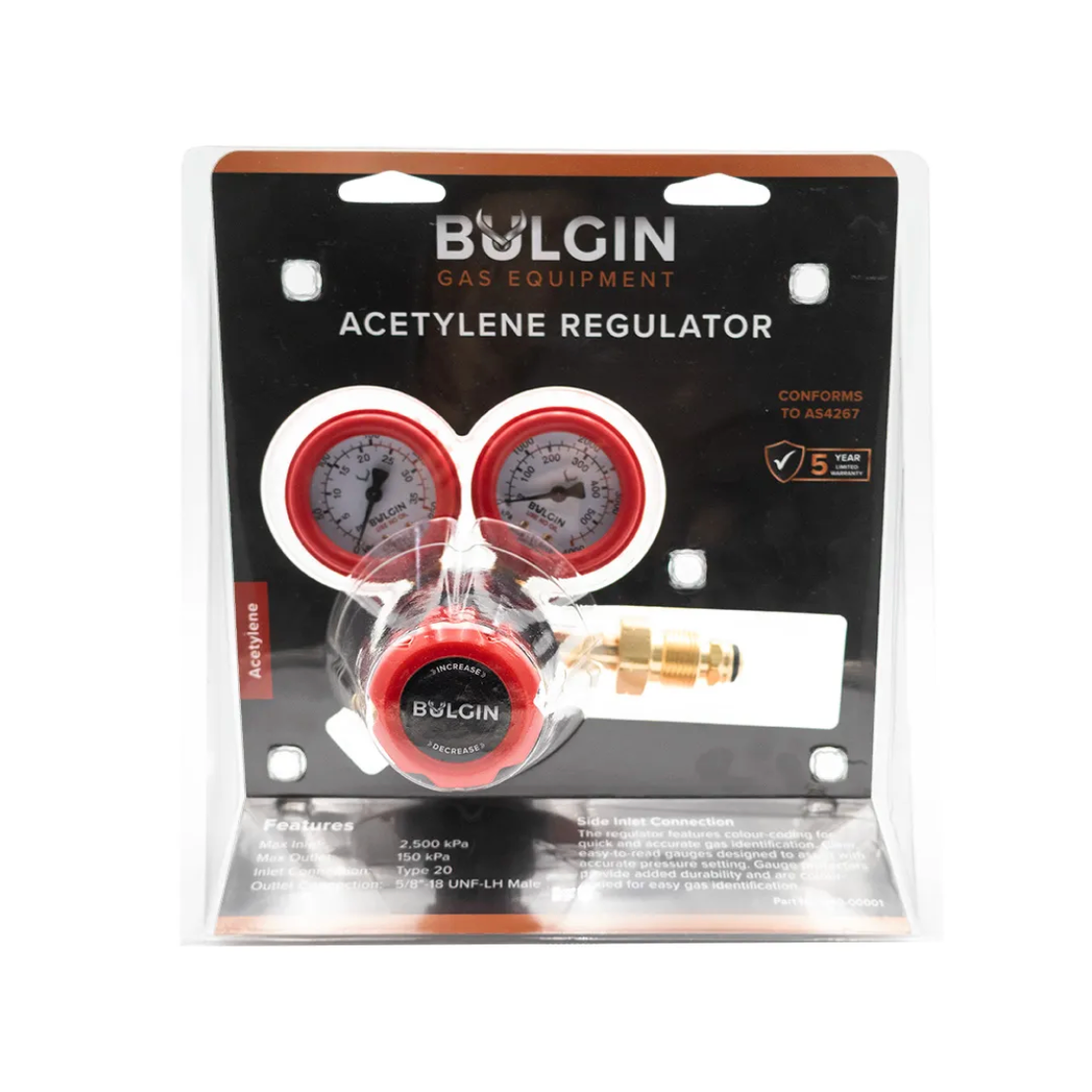

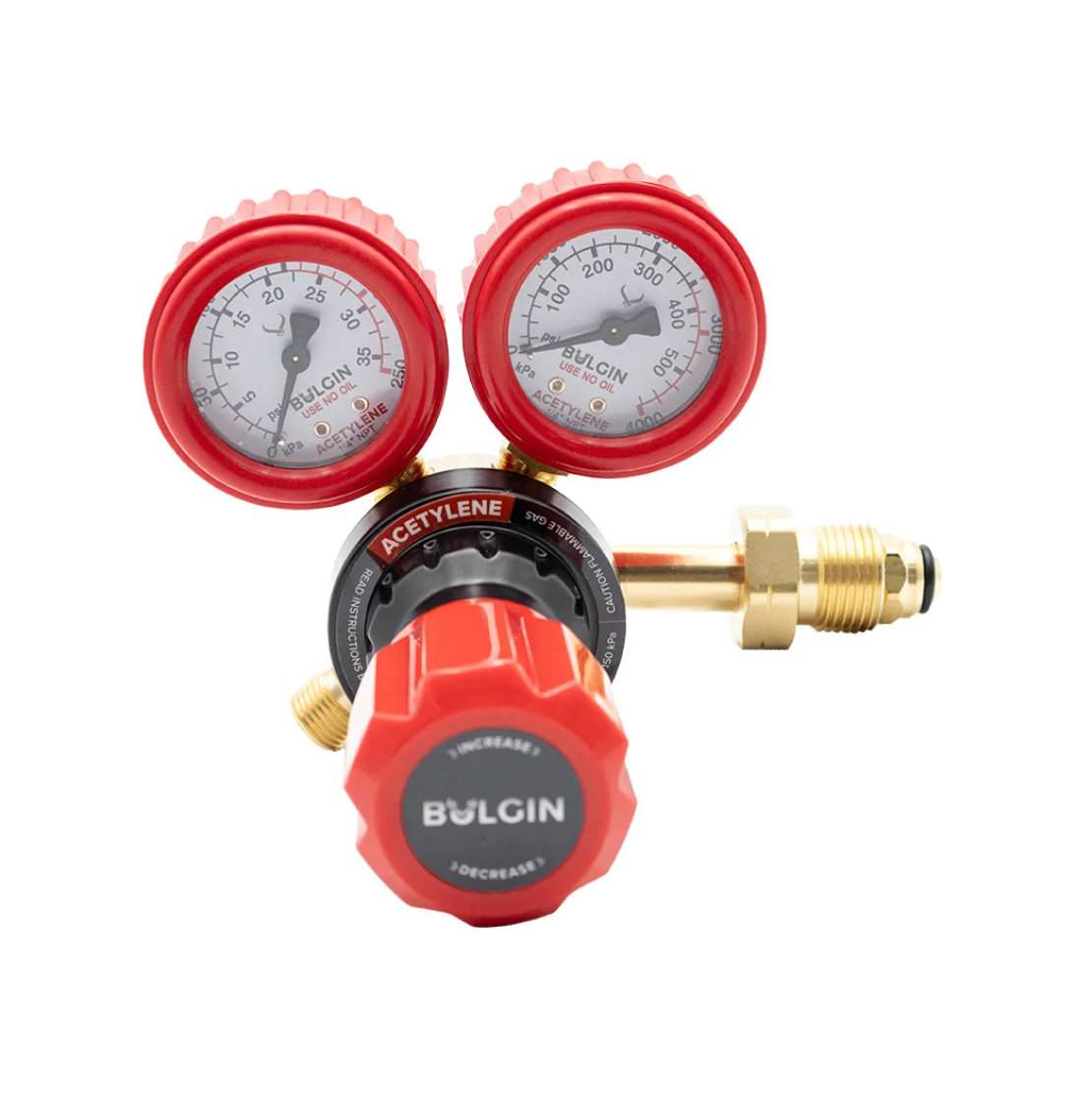

Acetylene Regulator 0-150kPa Side Entry Type 20 AS 4267

Engineered for precision. Built for durability. Trusted in every weld.

When working with oxy-fuel systems, performance and safety are everything. The Bulgin Gas Equipment Acetylene Regulator is engineered to deliver stable, controlled gas pressure for clean, reliable flame performance in demanding welding and cutting environments.

Designed for professional fabrication and industrial use, it provides smooth pressure adjustment, dependable safety protection, and rugged durability you can rely on day after day.

Key Features

• Gauge protectors for added durability

• Integrated safety features: sintered inlet filtration

• Compatible with standard industrial acetylene cylinders and hoses

• Colour coded for clear gas identification
• Conforms to Australian Standard AS 4267
• Backed by Limited 5-Year Warranty

Applications

Oxy-acetylene welding, oxy-fuel cutting, brazing, heating, fabrication, and maintenance operations.

Technical Specifications

• Body Material: High-grade machined brass

• Diaphragm: NBR (suitable for acetylene)

• Inlet Pressure Rating: Up to 2,500 kPa

• Outlet Pressure Range: 0–150 kPa

• Inlet Connection: Type 20 as per AS 2473.2

• Outlet Connection: 5/8"-18 UNF LH

• Gauges: Dual gauge (inlet & delivery) with polycarbonate lens and gauge protectors

• Safety Features: sintered inlet filter

• Standards Compliance: Conforms to AS 4267

• Temperature Rating: −20°C to +60°C

Available Industrial Regulator Range

Also available for Oxygen, LPG/Propane, Argon, Argon mixes, and Nitrogen.
